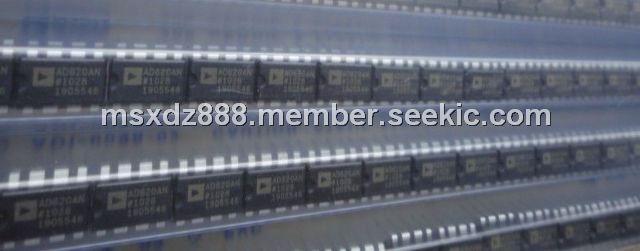

AD620ANZ

low cost, high accuracy instrumentation amplifier, low power, 8-DIP, 18mA, Instrumentation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.00~5.00

PartNumber:: AD620ANZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Yan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-17

From Other Seller

Part Number:AD620ANZ
US $4.00 - 5.00
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD620ANZ is a low cost, high accuracy instrumentation amplifier that requires only one external resistor to set gains of 1 to 10,000. Furthermore, the AD620ANZ features 8-lead SOIC and DIP packaging that is smaller than discrete designs and offers lower power (only 1.3 mA max supply current), making it a good fit for battery-powered, portable (or remote) applications. The applications of the AD620ANZ include Weigh scales, ECG and medical instrumentation, Transducer interface, Data acquisition systems, Industrial process controls, Battery-powered and portable equipment.

Parametrics

AD620ANZ absolute maximum ratings: (1)Supply Voltage:±18 V ; (2)Internal Power Dissipation:650 mW ; (3)Input Voltage (Common-Mode):±VS ; (4)Differential Input Voltage:25 V ; (5)Output Short-Circuit Duration:Indefinite ; (6)Storage Temperature Range (Q):-65℃ to +150℃; (7)Storage Temperature Range (N, R):-65℃ to +125℃ ; (8)Operating Temperature Range:-40℃ to +85℃ ; (9)Lead Temperature Range(Soldering 10 seconds):300℃.

Features

AD620ANZ features: (1)Easy to use ; (2)Gain set with one external resistor (Gain range 1 to 10,000) ; (3)Wide power supply range (±2.3 V to ±18 V) ; (4)Higher performance than 3 op amp IA designs ; (5)Available in 8-lead DIP and SOIC packaging ; (6)Low power, 1.3 mA max supply current ; (7)Excellent dc performance (B grade) ; (8)50 μV max, input offset voltage ; (9)0.6 μV/℃ max, input offset drift ; (10)1.0 nA max, input bias current ; (11)100 dB min common-mode rejection ratio (G = 10) ; (12)Low noise:9 nV/√Hz @ 1 kHz, input voltage noise, 0.28 μV p-p noise (0.1 Hz to 10 Hz) ; (13)Excellent ac specifications:120 kHz bandwidth (G = 100),15 μs settling time to 0.01%.
