Product Summary

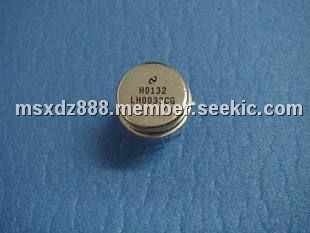

The LH0033G is a high speed, FET input, voltage follower/buffer designed to provide high current drive at frequencies from DC to over 100 MHz. The LH0033G will provide ±10 mA into 1 kΩ loads (±100 mA peak) at slew rates of 1500V/ms.
Parametrics
LH0033G absolute maximum ratings: (1)Supply Voltage (Va±Vb): 40V; (2)Junction Temperature: 175℃; (3)Input Voltage: ±VS; (4)Continuous Output Current: ±100 mA; (5)Lead Temp. (Soldering, 10 seconds): 300℃.
Features
LH0033G features: (1)Ultra fast (LH0063): 6000 V/ms; (2)Wide range single or dual supply operation; (3)Wide power bandwidth: DC to 100 MHz; (4)High output drive: g10V with 50X load; (5)Low phase non-linearity: 2 degrees; (6)Fast rise times: 2 ns; (7)High input resistance.

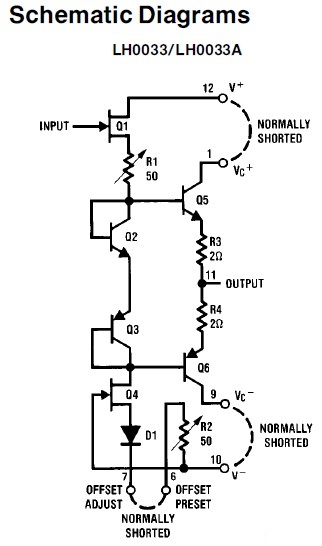

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LH0033G |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LH0033C |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LH0033CG |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LH0033G |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LH0036C |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LH0033 / LH0033C |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LH0033 |
Other |
|
Data Sheet |
Negotiable |
|
||||
