Product Summary
The ZR36504 is an ideal solution for digital camera manufacturers who want to utilize the Universal Serial Bus as an interface between the camera and the computer. Using a proprietary video compression algorithm, the ZR36504 enables a throughput of up to 30f/s for CIF size images and up to 15f/s for VGA size images, utilizing only half of total available bandwidth of the USB port.
Parametrics
Absolute maximum ratings: (1)DC Supply Voltage: -0.5 to 4.0 V; (2)Voltage, any pin to GND: -0.5 to Vdd+0.5 V; (3)DC Current Drain per Pin (Excluding Vdd, GND): ±14 mA; (4)Junction Temperature Range: -40 to +125 ℃; (5)Storage Temperature Range: -55 to +125 ℃.
Features
Features: (1)Up to 30 frames/sec @ CIF size (352x288 pixels); (2)Up to 15 frames/sec @ VGA size (640x480 pixels); (3)Connects to various YUV sources (4:4:4, 4:2:2, 16 or 8-bit bus); (4)Selectable Raw/Compressed video out; (5)Variable Compression ratio; (6)Selectable USB bandwidth (0.5Mbps - 7.5Mbps in 0.5Mbps steps): Built-in programmable true scaler (Down Scale - horizontal and vertical).

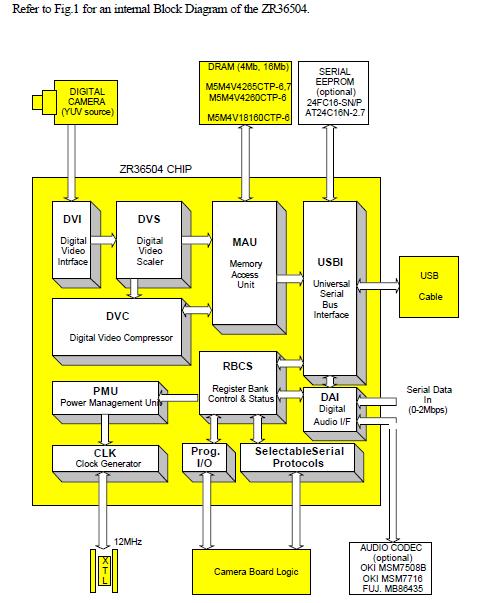

Diagrams
 |
