Product Summary
The MAX499CWG is a high-speed, video switch with on-board closed-loop buffer amplifier. The buffer amplifier features +6dB gain (AVCL = 2V/V), 250MHz -3dB bandwidth, 70MHz 0.1dB gain flatness, and 1250V/ms slew rate. Fast switching time (3ns) and fast settling time (12ns for a 4V step) make the MAX499CWG excellent choice for a wide variety of video applications. The low differential gain/phase errors (0.03%/0.06) and wide bandwidth make them ideal for both composite-video and RGB applications. The MAX499CWG is capable of delivering ±2.5V into back-terminated 50Ω or 75Ω cables, and they deliver ±2V to a 75Ω load, allowing multiple cables to be driven from a single output.The applications of the MAX499CWG include video switching and routing, broadcast-quality composite-video, multiplexing, workstations, video editing, broadcast and high-definition tv systems, multimedia products, medical imaging.
Parametrics
MAX499CWG absolute maximum ratings: (1)Supply Voltage (VCC to VEE): +12V; (2)Voltage on IN__ to GND: (VEE - 0.3V) to (VCC + 0.3V); (3)Voltage on Digital Inputs (LE, EN, A0, CS): -0.3V to (VCC + 0.3V); (4)Voltage on OUT_ (disabled): ±4V; (5)Output Short-Circuit Duration to -4V ≤ OUT ≤ +4V: Continuous; (6)Continuous Power Dissipation (TA = +70℃): 24-Pin SO (derate 11.76mW/℃): 941mW; 28-Pin SO (derate 12.5mW/℃): 1W; (7)Operating Temperature Range: 0℃ to +70℃; (8)Storage Temperature Range: -65℃to +150℃; (9)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX499CWG features: (1)High Speed: 250MHz Small-Signal -3dB Bandwidth; 135MHz Full-Power -3dB Bandwidth; (2)70MHz 0.1dB Gain Flatness; (3)1250V/μs Slew Rate; (4)12ns to 0.1% Settling Time; (5)0.03/0.06% Differential Phase/Gain Error; (6)2pF Input Capacitance; (7)3ns Channel-Switching Time; (8)120mVp-p Channel-Switching Transient; (9)Three-State Output Allows Large Switch Arrays; (10)Directly Drives 50 or 75 Back-Terminated Cables.

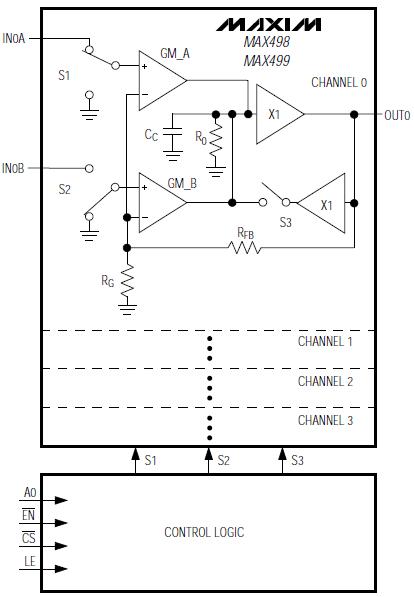

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX499CWG |
Maxim Integrated Products |
Multiplexer Switch ICs |
Data Sheet |
Negotiable |
|
||||
|
MAX499CWG+ |
Maxim Integrated Products |
Multiplexer Switch ICs |
Data Sheet |
Negotiable |
|
||||
|
MAX499CWG+T |
Maxim Integrated Products |
Video Switch ICs |
Data Sheet |
Negotiable |
|
||||
|
MAX499CWG-T |
Maxim Integrated Products |
Video Switch ICs |
Data Sheet |
Negotiable |
|
||||
