Product Summary

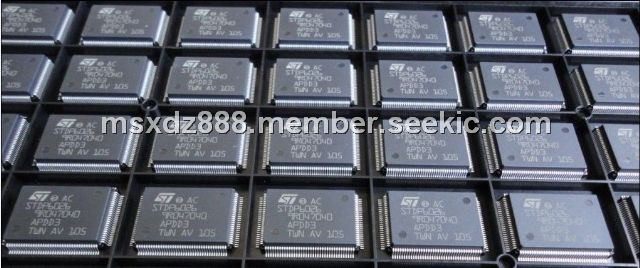

The STDP6026 is an all-in-one LCD monitor controller with analog (RGB), DVI, DisplayPort 1.1a inputs and supporting resolutions up to WUXGA in a 128 PQFP package. The STDP6026 leverages Genesis Microchip’s patented advanced image-processing technology, as well as a proven integrated ADC/PLL and an Ultra-Reliable DVI compliant digital receiver to deliver a high-quality solution for mainstream dual input monitors. In addition, the STDP6026 includes an integrated x86 OCM with SPI compatible interface, advanced color control features, a multicolor proportional font OSD engine, and a number of system I/O components.
Features
STDP6026 features: (1)Programmable zoom and shrink scaling; (2)DisplayPort 1.1a compliant receiver - 4-lane DisplayPort input; (3)Ultra-Reliable DVI receiver (165 MHz); (4)Triple-channel (10-bit) ADC (205 MHz) and PLL; (5)Faroudja RealColor color processing; (6)Image enhancement; (7)12-bit processing; (8)Deep color support; (9)xvYCC color space support; (10)Dual channel 8-bit LVDS output; (11)HDMI 1.3 RX integrated with I2S (L/R channel) or SPDIF audio utput ports; (12)Intel x86-compatible microcontroller with external SPI ROM interface; (13)12-bit panel gamma correction and high-quality ; (14)dithering for 8-bit and 6-bit panel interface.

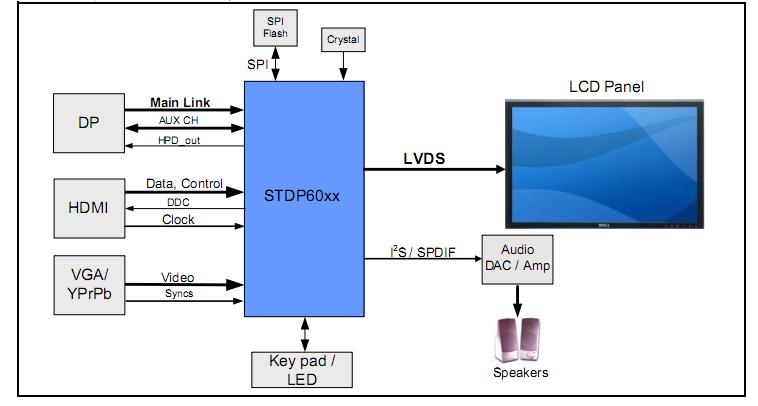

Diagrams
