Product Summary

The SKY77255-11 is a Power Amplifier Module (PAM). The SKY77255-11 is a fully matched, 10-pad, surface mount module developed for Time Division Synchronous Code Division Multiple Access (TD-SCDMA)applications. Skyworks’SKY77255-11 also supports TD-SCDMA multi-slot operation. This small and efficient module packs full 1880–1920 MHz and 2010-2025 MHz bandwidth coverage into a single compact package. The PAM meets the stringent spectral linearity requirements of TD-SCDMA transmission, with high power added efficiency for power output of up to 28 dBm. The applications of the SKY77255-11 includes TD-SCDMA handsets.

Parametrics

SKY77255-11 absolute maximum ratings: (1)1880–1920 MHz, 2010-2025 MHz; (2)Low voltage supply: 3.2 V to 4.2 V; (3)High efficiency: 40% @ 28 dBm; (4)load: 50 Ω.

Features

SKY77255-11 features: (1)Low voltage positive bias supply: 3.2 V to 4.2 V; (2)Supports low collector voltage operation; (3)Good linearity; (4)High efficiency: 40% @ 28 dBm; (5)Large dynamic range; (6)Small, low profile package: 3 mm x 3 mm 0.85 mm; 10-pad configuration; (7)Power-down control; (8)Low power-state control; (9)InGaP; (10)CMOS Compatible Control; (11)Integrated Directional Coupler.

Diagrams

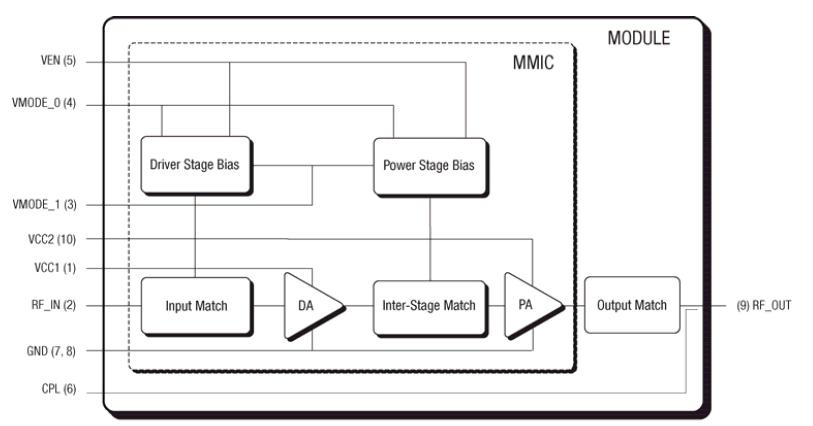

SKY77255-11 block dragram
