Product Summary

The FAN1086M25X is a low dropout three-terminal regulator with 1.5A output current capability. The FAN1086M25X has been optimized for low voltage where transient response and minimum input voltage are critical. The 2.85V version is designed specifically to be used in Active Terminators for SCSI bus. Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures. The applicaitons of the FAN1086M25X include Active SCSI terminators, High efficiency linear regulators, Post regulators for switching supplies, Battery chargers, 5V to 3.3V linear regulators, Motherboard clock supplies.

Parametrics

FAN1086M25X absolute maximum ratings: (1)VIN: 7.5 V; (2)Operating Junction Temperature Range: 0 to 125℃; (3)Storage Temperature Range: -65 to 150℃; (4)Lead Temperature (Soldering, 10 sec.): 300℃.

Features

FAN1086M25X featurea: (1)Low dropout voltage; (2)Load regulation: 0.05% typical; (3)Trimmed current limit; (4)On-chip thermal limiting; (5)Standard SOT-223, TO-263, and TO-252 packages; (6)Three-terminal adjustable or fixed 2.5V, 2.85V, 3.3V, 5V.

Diagrams

FAN1086M25X circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

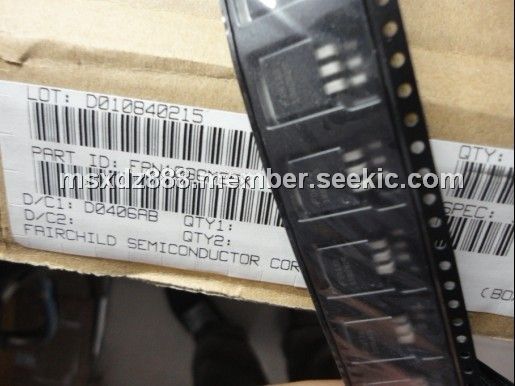

FAN1086M25X
FAN1086M25X
Fairchild Semiconductor
Low Dropout (LDO) Regulators 1.5A 2.5V LDO Volt
Data Sheet
Negotiable
