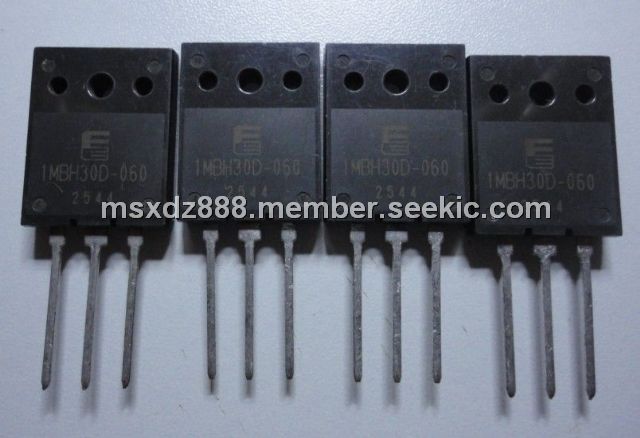

Product Summary
The 1MBH30D-060 is a Molded IGBT. It is suitable for Inverter for Motor drive, AC and DC Servo drive amplifier and Uninterruptible power supply.
Parametrics
1MBH30D-060 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 600V; (2)Gate-Emitter voltage, VGES: ±20V; (3)Collector current, DC, IC25: 48A at Tc=25℃; IC80: 30A at Tc=80℃; 1ms, ICP: 192A at Tc=25℃; (4)Max. power dissipation(IGBT), PC: 180W; (5)Operating temperature, Tj: 150℃; (6)Storage temperature, Tstg: -40 to 150℃; (7)Screw torque: 50Nm.
Features
1MBH30D-060 features: (1)Small molded package; (2)Low power loss; (3)Soft switching with low switching surge and noise; (4)High reliability, high ruggedness (RBSOA, SCSOA etc.); (5)Comprehensive line-up.

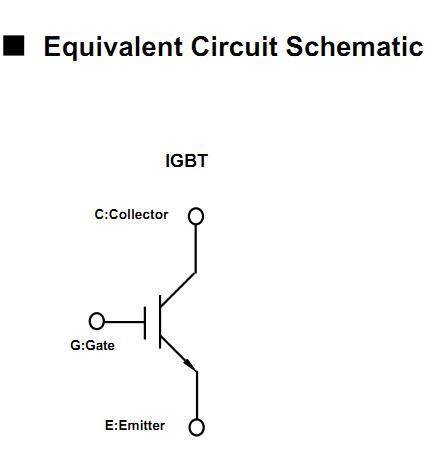

Diagrams
