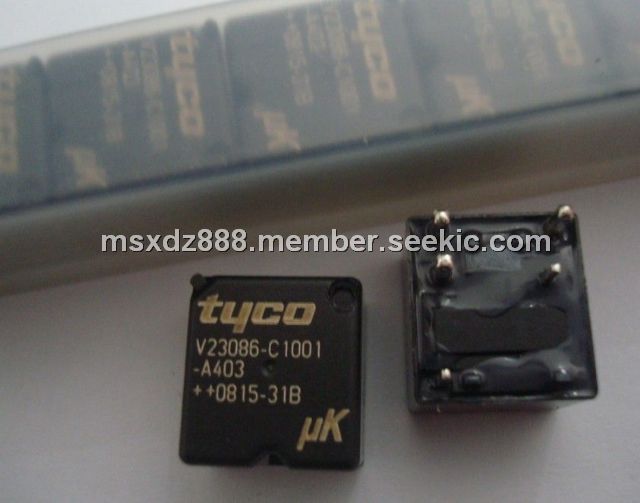

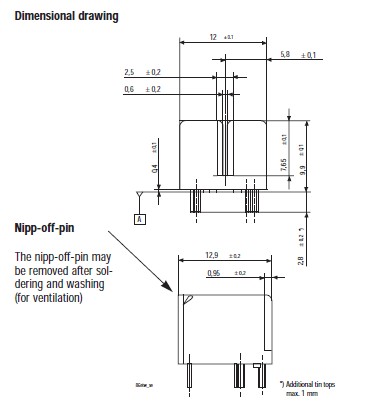

The V23086-C1001-A403 is a PCB relay. It is used in rear window and seat heating, wiper and indicator control, motor management and so on.
Parametrics
Coil datas: (1)Available for nominal voltages: 10, 12 VDC (other coils on request); (2)Nominal power consumption of the unsuppressed coil at nominal voltage: 0.55 W; (3)Test voltage winding/contact: 500 VACrms; (4)Upper limit temperature for the coil: 155 ℃; (5)Maximum ambient temperature range1): – 40 to + 105 ℃; (6)Max. switching rate without contact loading: 50 Hz; (7)Operate time: Typ. 3 msec; (8)Release time: Typ. 1.5 msec.
Features
Features: (1)Smallest power relay; (2)Minimal weight(0.14 oz. / 4 g); (3)Maximum continuous current 30 A.
