Product Summary

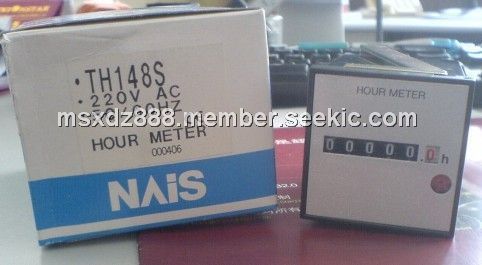

The TH148S is a DIN48 size hour meter. It has a wide application in Maintenance management of machine tools, automated machines, control panels, forming machines, medical equipment, generators, compressors, water treatment facilities, presses, motors, etc.

Parametrics

Absolute maximum ratings: (1)Rated operating voltage: 220V AC; (2)Allowable operating voltage range: 85 to 115% of rated operating voltage; (3)Rated frequency: 50/60Hz (selectable by switch); (4)Counting range: 0 to 99999.9 hours (TH14 series); (5)Minimum time display: 0.1 hours (6 min); (6)Rated power consumption Approx: 1.5 W; (7)Insulation resistance (Initial value) Min: 100MΩ; (8)Breakdown voltage (Initial value): 2,000 Vrms; (9)Max. temperature rise: 55℃, 131°F; (10)Ambient temperature: –10 to +50℃ +14 to +122°F; (11)Ambient humidity: Max. 85% RH (non condensing).

Features

Features: (1)High-performance compact syncronous motor; (2)Common for 50/60 Hz power frequency; (3)Dimensions as per DIN 43700 standard; (4)Easier wiring; (5)Rotary indicator; (6)Compliant with UL, CSA and CE.

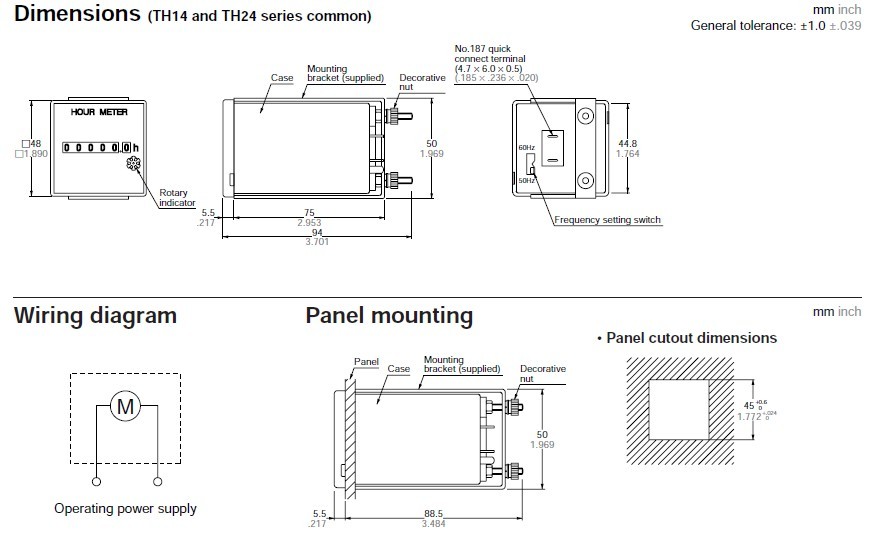

Diagrams
