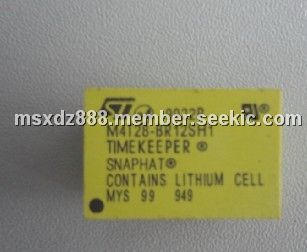

The M4T28-BR12SH1 SNAPHAT top is a detachable lithium power source for STs non-volatile TIMEKEEPER surface-mount SOIC (MH) package (28- and 44-pin). The M4T28-BR12SH1 top contains both the battery and crystal and is designed to be snapped on after the SOIC is surface mounted on the PC board. Thus the two piece solution prevents the battery and crystal from being exposed to the high temperatures of the surface mount process.
Parametrics
Absolute maximum ratings: (1)Ambient Operating Temperature, Grade 1, TA: 0 to 70℃; (2)Ambient Operating Temperature, Grade 6, TA: –40 to 85℃; (3)Storage Temperature (VCC Off, Oscillator Off), TSTG: –40 to 85℃.
Features
Features: (1)provides battery backup power for non-volatile timekeeper and supervisor devices in THE 28- OR 44-pin snaphat SOIC package; (2)removable battery avoids heat associated with surface mount process; (3)snaps directly onto surfacemounted snaphat SOIC; (4)choice of battery capacities: 48mAh; (5)keyed insertion to insure proper assembly; (6)removable for replacement and proper disposal; (7)available in tubes or tape & reel.
