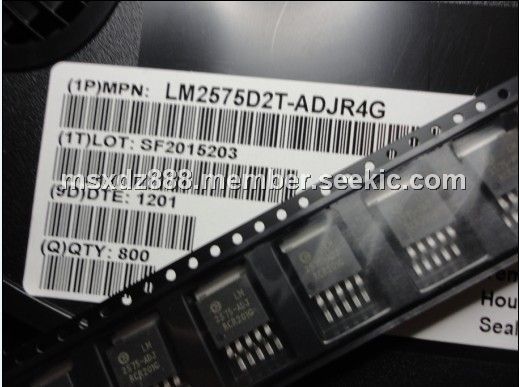

LM2575D2T-ADJ

Product Summary

The LM2575D2T-ADJ is an adjustable output voltage, step-down switching regulator.It is a monolithic integrated circuit ideally suited for easy and convenient design of a step.down switching regulator (buck converter). The circuit is capable of driving a 1.0 A load with excellent line and load regulation. The LM2575D2T-ADJ is available in fixed output voltages of 3.3 V, 5.0 V, 12 V, 15 V, and an adjustable output version. The regulator was designed to minimize the number of external components to simplify the power supply design. Standard series of inductors optimized for use with the LM2575D2T-ADJ are offered by several different inductor manufacturers. The applications of the LM2575D2T-ADJ include simple and high-efficiency step-down (buck) regulators, efficient pre-regulator for linear regulators, on-card switching regulators, positive to negative converters (buck-boost), negative step-up converters, power supply for battery chargers.

Parametrics

LM2575D2T-ADJ absolute maximum ratings: (1)Maximum Supply Voltage, Vin: 45 V; (2)ON/OFF Pin Input Voltage: 0.3 V ≤ V ≤ +Vin V; (3)Output Voltage to Ground (Steady.State): -1.0 V; (4)Power Dissipation, PD: Internally Limited W; Thermal Resistance; Junction.to.Ambient, RθJA: 65℃/W; Thermal Resistance, Junction.to.Case RθJC 5.0℃/W; (5)Storage Temperature Range, Tstg: -65 to +150℃; (6)Minimum ESD Rating (Human Body Model: C = 100 pF, R = 1.5 kΩ): 2.0 kV; (7)Lead Temperature (Soldering, 10 s): 260℃; (8)Maximum Junction Temperature, TJ: 150℃.

Features

LM2575D2T-ADJ features: (1)3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions; (2)Adjustable Version Output Voltage Range of 1.23 V to 37 V ±% Maximum Over Line and Load Conditions; (3)Guaranteed 1.0 A Output Current; (4)Wide Input Voltage Range: 4.75 V to 40 V; (5)Requires Only 4 External Components; (6)52 kHz Fixed Frequency Internal Oscillator; (7)TTL Shutdown Capability, Low Power Standby Mode; (8)High Efficiency; (9)Uses Readily Available Standard Inductors; (10)Thermal Shutdown and Current Limit Protection; (11)Moisture Sensitivity Level (MSL) Equals 1; (12)Pb-Free Packages are Available.

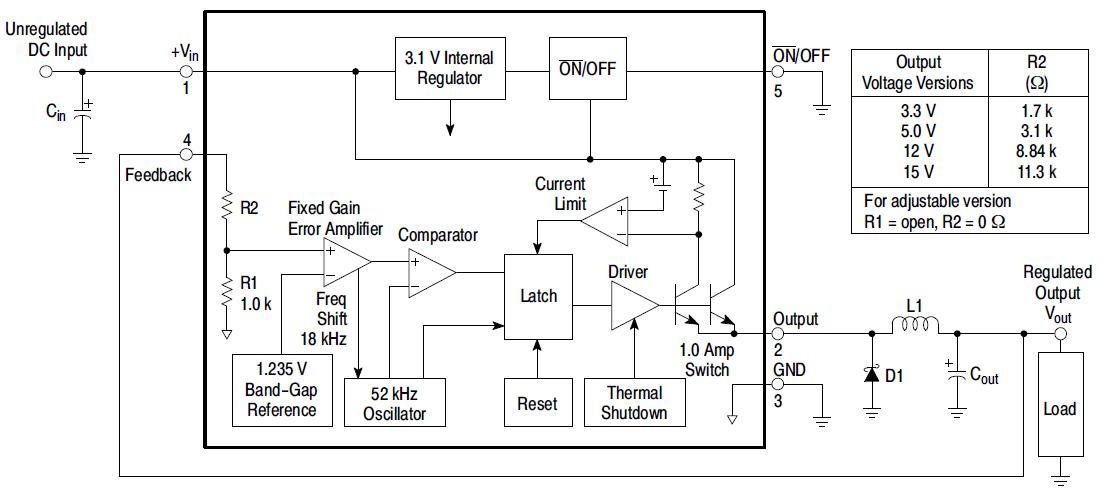

Diagrams
