Product Summary

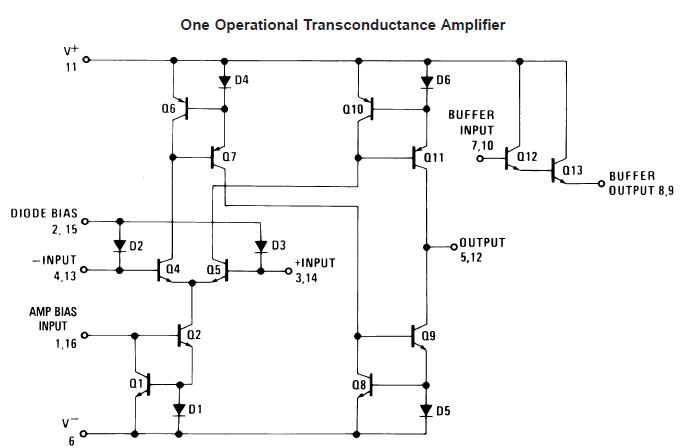

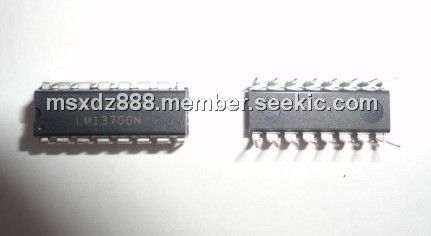

The LM13700N is a dual operational transconductance amplifier with linearizing diodes and buffers. The LM13700N consists of two current controlled transconductance amplifiers, each with differential inputs and a push-pull output. The two amplifiers share common supplies but otherwise operate independently. Linearizing diodes are provided at the inputs to reduce distortion and allow higher input levels. The result is a 10 dB signal-to-noise improvement referenced to 0.5 percent THD. High impedance buffers are provided which are especially designed to complement the dynamic range of the amplifiers. The applications of the LM13700N include Current-controlled amplifiers, Current-controlled impedances, Current-controlled filters, Current-controlled oscillators, Multiplexers, Timers, Sample-and-hold circuits.
Parametrics
LM13700N absolute maximum ratings: (1)Supply Voltage: 36 VDC or ±18V; (2)Power Dissipation (Note 3) TA = 25℃: 570 mW; (3)Differential Input Voltage: ±5V; (4)Diode Bias Current (ID): 2mA; (5)Amplifier Bias Current (IABC): 2mA; (6)Output Short Circuit Duration: Continuous; (7)Buffer Output Current: 20 mA; (8)Operating Temperature Range: 0℃ to +70℃; (9)DC Input Voltage: +VS to -VS; (10)Storage Temperature Range: -65℃ to +150℃; (11)Soldering Information, Dual-In-Line Package Soldering (10 sec.): 260℃; (12)Small Outline Package: Vapor Phase (60 sec.): 215℃; Infrared (15 sec.): 220℃.
Features
LM13700N features: (1)gm adjustable over 6 decades; (2)Excellent gm linearity; (3)Excellent matching between amplifiers; (4)Linearizing diodes; (5)High impedance buffers; (6)High output signal-to-noise ratio.
Diagrams
