Product Summary

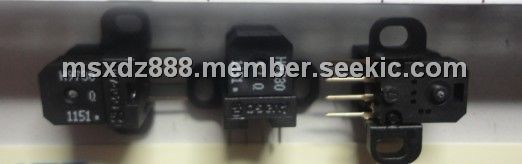

The HEDS-9730#Q50 is a high performance incremental encoder module. When operated in conjunction with either a codewheel or codestrip, this module detects rotary or linear position. The encoder consists of a lensed LED source and a detector IC enclosed in a small C-shaped plastic package. Due to a highly collimated light source and a unique photodetector array, the module is extremely tolerant to mounting misalignment. The standard HEDS-9730#Q50 is designed for use with an appropriate optical radius codewheel or linear codestrip. It provides sophisticated motion detection, making closed loop control very cost competitive. Typical applications include printers, plotters, copiers and office automation equipment.

Parametrics

HEDS-9730#Q50 absolute maximum ratings: (1)Storage Temperature, TS:-40 to 85°C; (2)Operating Temperature, TA:-40 to 85°C; (3)Supply Voltage, VCC:-0.5 to 7Volts; (4)Output Voltage, VO: -0.5 to VCC Volts; (5)Output Current per Channel, IOUT: -1.5 to19 mA; (6)Soldering Temperature, TSOL: 20 to 260 °C; (7)Load Capacitance, CL: 100 pF max.

Features

HEDS-9730#Q50 features: (1)Small Size; (2)High Resolution; (3)Two Channel Quadrature Output; (4)Linear and Rotary Applications; (5)No Signal Adjustment required; (6)TTL or 3.3V/5V CMOS Compatible; (7)Wave Solderable; (8)Lead-free Package; (9)-40°C to 85°C Operating Temperature; (10)Single 3.3V Supply.

Diagrams

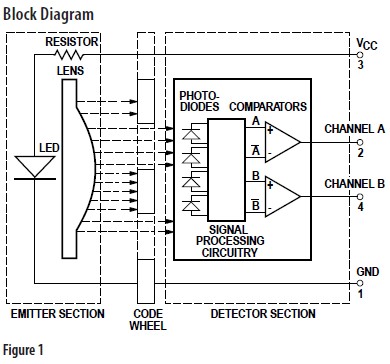

HEDS-9730#Q50 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HEDS-9730#Q50
HEDS-9730#Q50

Avago Technologies

Encoders 2 Channel 180CPR

Data Sheet

0-58: $5.88
58-100: $5.54
100-250: $5.21
250-500: $5.04
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HEDS-5120#A05
HEDS-5120#A05

Avago Technologies

Encoders 2 Channel 500CPR

Data Sheet

Negotiable
HEDS-5120#H06
HEDS-5120#H06

Avago Technologies

Encoders 2 Channel 400CPR

Data Sheet

0-58: $9.32
58-100: $8.79
100-250: $8.26
250-500: $7.99
HEDS-5120#E12
HEDS-5120#E12

Avago Technologies

Encoders 2 Channel 200CPR

Data Sheet

0-58: $9.32
58-100: $8.79
100-250: $8.26
250-500: $7.99
HEDS-5120#F05
HEDS-5120#F05

Avago Technologies

Encoders 2 Channel 256CPR

Data Sheet

0-58: $9.32
58-100: $8.79
100-250: $8.26
250-500: $7.99
HEDS-5120#E06
HEDS-5120#E06

Avago Technologies

Encoders 2 Channel 200CPR

Data Sheet

Negotiable
HEDS-5500#A04
HEDS-5500#A04

Avago Technologies

Encoders 2 Channel 500 CPR 5/32in Metal CW

Data Sheet

0-12: $34.45
12-25: $26.80
25-100: $25.27
100-250: $23.74
