Product Summary
The FT2232L is an USB UART / FIFO IC. This device features two Multi-Purpose UART / FIFO controllers which can be configured individually in several different modes. As well as a UART interface, FIFO interface and Bit-Bang IO modes of the FT2232L. The device offers a variety of additional new modes of operation, including a Multi-Protocol Synchronous Serial Engine interface which is designed specifically for synchronous serial protocols such as JTAG and SPI bus.
Parametrics
FT2232L absolute maximum ratings: (1)Storage Temperature: –65 to + 150℃; (2)Floor Life (Out of Bag) at Factory Ambient: 192 Hours; (3)Ambient Temperature (Power Applied): 0 to + 70℃; (4)VCC Supply Voltage: -0.5V to +6.00V; (5)DC Input Voltage - Inputs: -0.5V to VCC + 0.5V; (6)DC Input Voltage - High Impedance Bidirectionals: -0.5V to VCC + 0.5V; (7)DC Output Current – Outputs: 24mA; (8)DC Output Current – Low Impedance Bidirectionals: 24mA; (9)Power Dissipation (VCC = 5.25V): 500mW; (10)Electrostatic Discharge Voltage (Human Body Model) (I < 1μA): +/- 3000V; (11)Latch Up Current (Vi = +/- 10V maximum, for 10 ms): +/-200mA.
Features
FT2232L features: (1)Single Chip USB Dual Channel Serial / Parallel Ports with a variety of configurations; (2)Entire USB protocol handled on the chip...no USB-specific firmware programming required; (3)FT232BM-style UART interface option with full Handshaking & Modem interface signals; (4)UART Interface supports 7 / 8 bit data, 1 / 2 stop bits, and Odd / Even / Mark / Space / No Parity; (5)Transfer Data Rate 300 to 1 Mega Baud (RS232); (6)Transfer Data Rate 300 to 3 Mega Baud (TTL and RS422 / RS485); (7)Auto Transmit Enable control for RS485 serial applications using TXDEN pin; (8)FT245BM-style FIFO interface option with bi-directional data bus and simple 4 wire handshake interface; (9)Transfer Data Rate up to 1 MegaByte / Second; (10)Enhanced Bit-Bang Mode interface option.

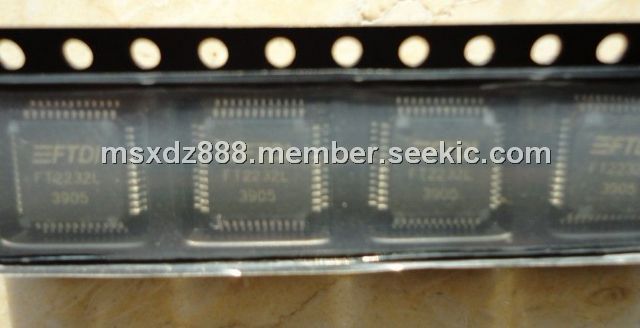

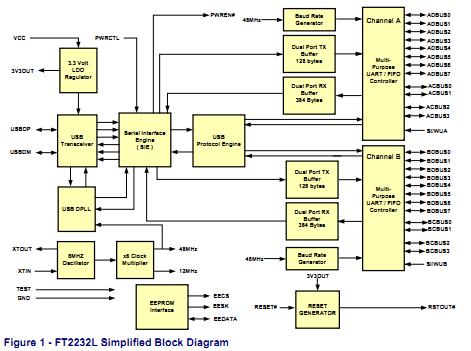

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FT2232L |
FTDI |
UART Interface IC Obsolete See FT2232D-REEL |
Data Sheet |
Negotiable |
|
||||||||||||||
