DF30AA160

DF30AA160, Power Diode Module, 1600V, 30A, SanRex Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $20.00~25.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $20.00~25.00

PartNumber:: DF30AA160

Brand:: SanRex Corporation - SanRex | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Yan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-09

From Other Seller

Part Number:DF30AA160
US $20.00 - 25.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

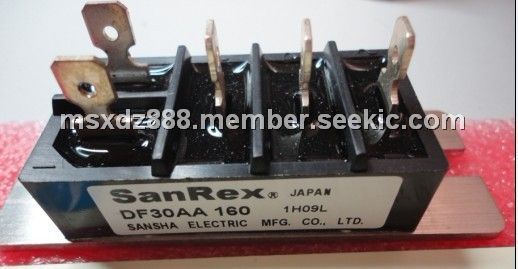

The DF30AA160 is a power diode module. The DF30AA160 is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 30Amp (Tc=117℃) Repetitive peak reverse voltage is up to 1,600V. The applications of the DF30AA160 include AC-DC Motor Drive/AVR/Switching for three phase rectification.

Parametrics

DF30AA160 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage, VRRM: 1600V; (2)Non-Repetitive Peak Reverse Voltage, VRSM: 1700V; (3)Output current (D.C.), three phase. full wave. TC= 117℃, ID: 30A; (4)Surge Forward Current, 1 cycle, 50/60HZ, peak value, non-repetitive, IFSM: 270/300 A; (5)Junction Temperature, Tj: -40 to +150℃; (6)Storage Temperature, Tstg: -40 to +125℃; (7)Isolation Breakdown Voltage(R.M.S.), Main Terminal to case 1minute, VISO: 2500 V; (8)Mounting Torque, Mounting(M6), Recommended Value 2.5-3.9(25-40): 4.7(48)N·m(kgf·cm); (9)Mass, Typical Value: 90 g.

Features

DF30AA160 features: (1)TjMax=150℃; (2)Isolated Mounting Base; (3)High reliability by unique glass passivation; (4)Easy Assemble by the #250 terminal Tab.
