Product Summary

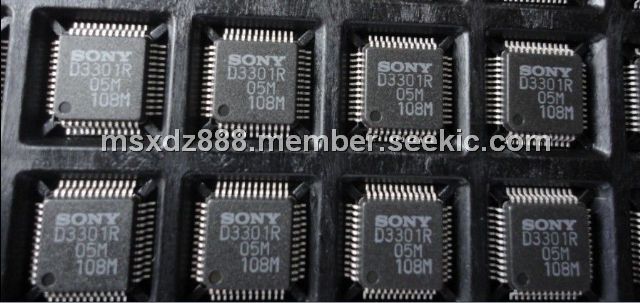

The CXD3301R is a 36Msps CCD Signal Processor. It processes (correlated double sampling, programmable gain amplifier) the signals output from a CCD image sensor and performs conversion from analog signals to digital signals. The application of it is CCD cameras.
Parametrics
CXD3301R absolute maximum ratings: (1)Supply voltage AVDD, DVDD:4.0V; (2)Supply voltage difference (between AVDD pins):±0.1V; (3)Ground voltage difference (between AVSS pins):±0.1V; (4)Digital input voltage:–0.3 to +5.3V; (5)Analog input voltage:–0.3 to AVDD + 0.3V; (6)Storage temperature Tstg:–55 to +125℃.
Features
CXD3301R features: (1)CCD signal processing: Correlated double sampling (CDS), Programmable gain amplifier (PGA); (2)Gain range: –6 to +42dB; (3)10-bit resolution No missing code guaranteed.

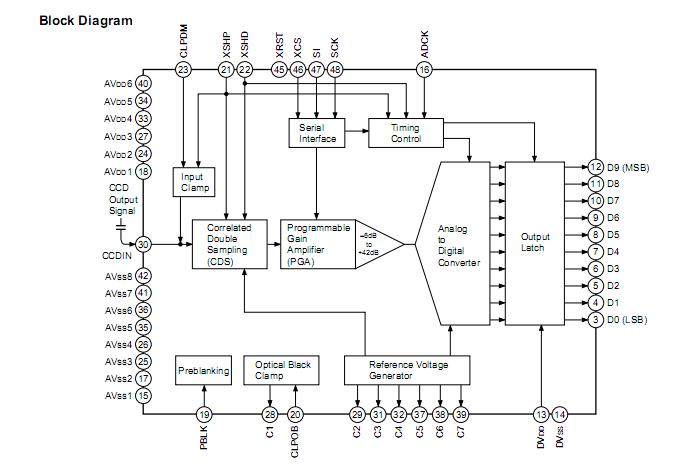

Diagrams
 |
