Product Summary

The CA3162E is a I2L monolithic A/D converter that provides a 3 digit multiplexed BCD output. It is used with the CA3161E BCD-to-Seven-Segment Decoder/Driver and a minimum of external parts to implement a complete 3-digit display. The CA3162AE is identical to the CA3162E except for an extended operating temperature range.

Parametrics

Absolute maximum ratings: (1)DC Supply Voltage (Between Pins 7 and 14): +7V; (2)Input Voltage (Pin 10 or 11 to Ground): ±15V.

Features

Features: (1)Dual Slope A/D Conversion; (2)Multiplexed BCD Display; (3)Ultra Stable Internal Band Gap Voltage Reference; (4)Capable of Reading 99mV Below Ground with Single Supply; (5)Differential Input; (6)Internal Timing - No External Clock Required; (7)Choice of Low Speed (4Hz) or High Speed (96Hz) Conversion Rate; (8)Overrange Indication; (9)Extended Temperature Range Version Available.

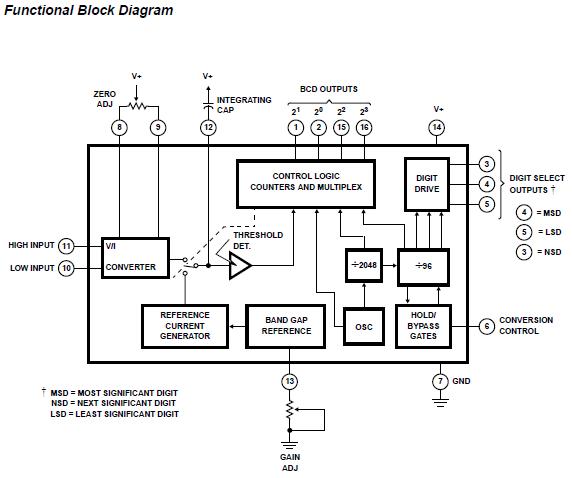

Diagrams
