Product Summary

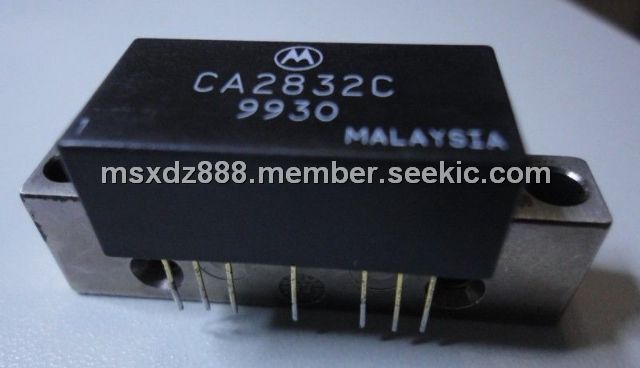

The CA2832C is a 1.6 watt wideband linear amplifier. It is designed for amplifier applications in 50 to 100 ohm systems requiring wide bandwidth, low noise and low distortion. This hybrid provides excellent gain stability with temperature and linear amplification as a result of the push–pull circuit design.
Parametrics
CA2832C absolute maximum ratings: (1)DC Supply Voltage:30 Vdc; (2)RF Power Input:+5 dBm; (3)Operating Case Temperature Range:–20 to +90℃; (4)Storage Temperature Range:–40 to +100℃.
Features
CA2832C features: (1)Specified Characteristics at VCC = 28 V, TC = 25℃; (2)Frequency Range:1 to 200 MHz; (3)Output Power:1580 mW Typ @ 1 dB Compression, f = 200 MHz; (4)Power Gain:35.5 dB Typ @ f = 100 MHz; (5)PEP:900 mW Typ @ –32 dB IMD; (6)Noise Figure:5 dB Typ @ f = 200 MHz; (7)ITO:47 dBm @ f = 200 MHz; (8)All Gold Metallization for Improved Reliability; (9)Unconditional Stability Under All Load Conditions.

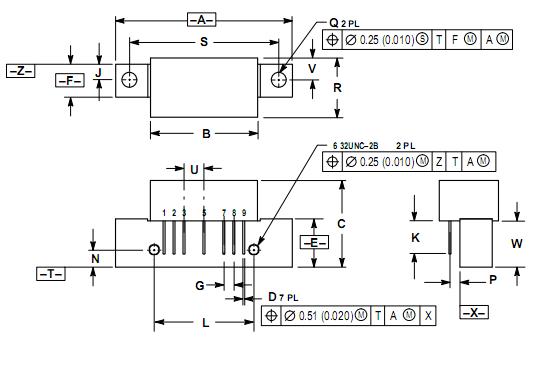

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CA2832C |
Other |
|
Data Sheet |
Negotiable |
|
||||
