Product Summary

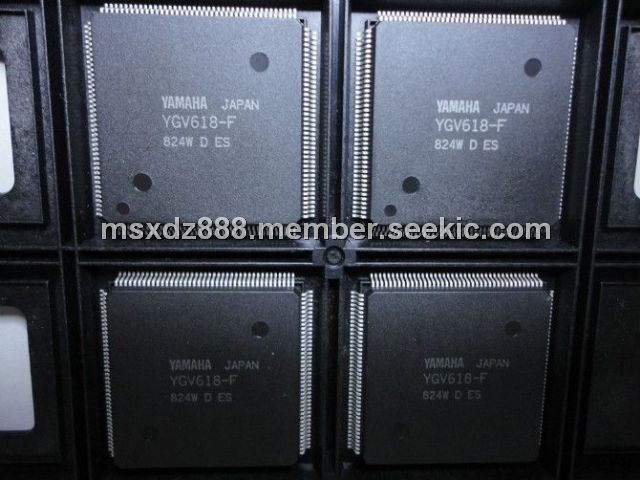

The YGV618-F is an advanved video display processor. It has a built-in PLL circuit which allows to superimpose the images outputted by the YGV618-F over an external video signals easier. The YGV618-F is best suited to the applications such as multi-vision display unit for automobile audio system, the display unit for automobile navigation system, on-screen display(OSD) of wide screen TV, video editing equipment and karaoke equipment.
Parametrics
YGV618-F absolute maximum ratings: (1)supply voltage:-0.5V to +7.0V; (2)input terminal voltage:-0.5V to VDD+0.5V; (3)output terminal voltage:-0.5V to VDD+0.5V; (4)output terminal current:-20mA to +20mA; (5)storage temperature:-50 to +125℃.
Features
YGV618-F features: (1)bit map plane is able to display images simultaneously using 16 colors, 256colors or 32768 colors; (2)a sprite is able to use 32*32 dots; (3)the sprite plane can be used as a crosshair line cursor; (4)high resolution display and interlaced scanning can be used; (5)has a builit-in flicker cancel filter; (6)displaying compressed data in horizontal direction; (7)all direction smooth scroll function can be used; (8)provides various drawing command functions.

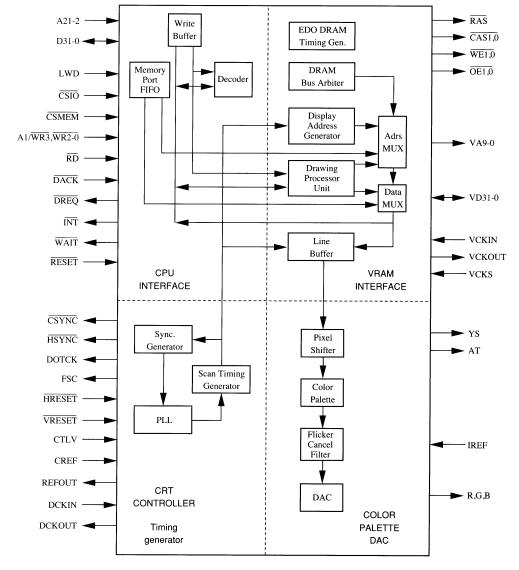

Diagrams
 |
