Product Summary

The VI-J60-CY is a member of the VI-J00 MiniMod family that establishes a new standard in component-level DC-DC converters. This “junior” size complement to the higher power VI-200 family offers up to 100W of isolated and regulated power in a board mounted package. Utilizing Vicors “zero-currentswitching” forward converter technology, proven by an installed base of over 8 million units, the MiniMod family combines state of the art power density with the efficiency, low noise and reliability required by next generation power systems.

Parametrics

Output characteristics: (1)Setpoint accuracy: 0.5% VNOM typ, 1.0% VNOM max ; (2)Load/line regulation: 0.05% VNOM typ, 0.2% VNOM max at LL to HL, 10% to Full Load; (3)Load/line regulation: 0.2% VNOM typ, 0.5% VNOM max at LL to HL, No Load to 10%; (4)Output temperature drift: 0.01 %/℃ typ, 0.02 %/℃ max Over rated temperature; (5)Long term drift: 0.02 %/1K hours typ; (6)Trim range: 50% to 110% VNOM; (7)Total remote sense compensation: 0.5 Volts min at 0.25V max. neg. leg; (8)Current limit:105% to 125% INOM at Automatic restart; (9)Short circuit current: 05% to 130% INOM.

Features

Features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TüV, VDE, BABT; (3)CE Marked; (4)Up to 90% Efficiency; (5)Size: 2.28" x 2.4" x 0.5"(57,9 x 61,0 x 12,7); (6)Remote Sense and Current Limit; (7)Logic Disable; (8)Wide Range Output Adjust; (9)ZCS Power Architecture; (10)Low Noise FM Control.

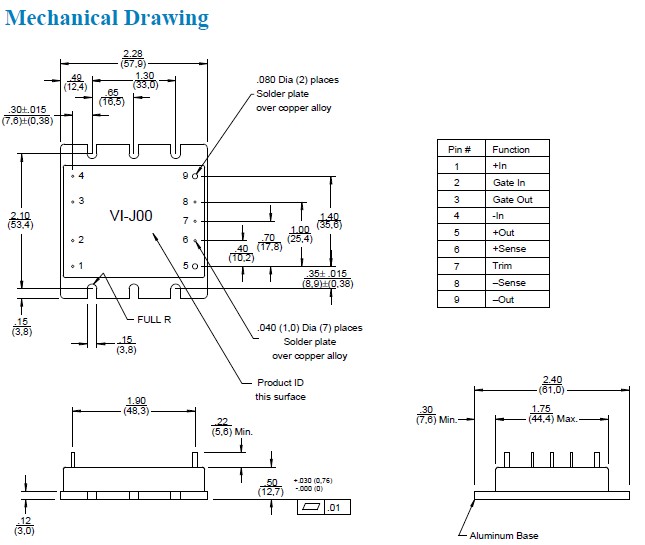

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

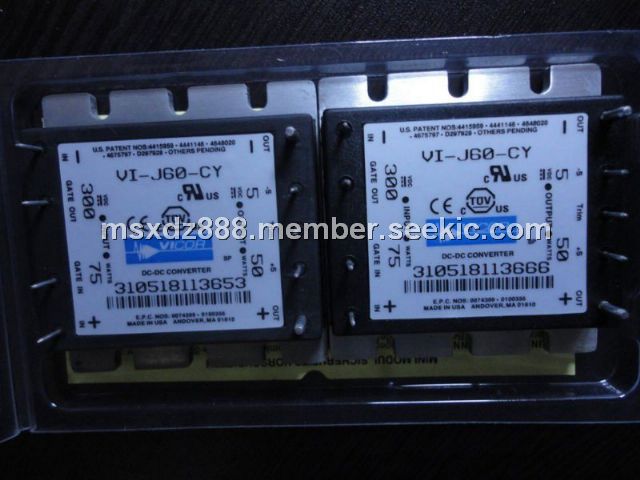

VI-J60-CY
VI-J60-CY


CONVERTER MOD DC/DC 5V 50W

Data Sheet

0-1: $87.87
1-10: $84.84
10-50: $80.60
VI-J60-CY-B1
VI-J60-CY-B1


CONVERTER MOD DC/DC 5V 50W

Data Sheet

0-1: $102.00
VI-J60-CY-F1
VI-J60-CY-F1


CONVERTER MOD DC/DC 5V 50W

Data Sheet

0-1: $97.44
VI-J60-CY-F2
VI-J60-CY-F2


CONVERTER MOD DC/DC 5V 50W

Data Sheet

0-1: $97.44
VI-J60-CY-F3
VI-J60-CY-F3


CONVERTER MOD DC/DC 5V 50W

Data Sheet

0-1: $97.44
VI-J60-CY-F4
VI-J60-CY-F4


CONVERTER MOD DC/DC 5V 50W

Data Sheet

0-1: $97.44
VI-J60-CY-S
VI-J60-CY-S


CONVERTER MOD DC/DC 5V 50W

Data Sheet

0-1: $93.96
