Product Summary

The VI-J5V-02 establishes a new standard in component-level DC-DC converter. This “junior” size complement to the higher power VI-200 family offers up to 100W of isolated and regulated power in a board mounted package. At one-half the size and twice the power density of previous 100W modules, and with a maximum operating temperature rating of 100℃, the MiniMod opens new horizons for board-mounted (distributed) power architectures. Utilizing Vicor’s “zero-currentswitching” forward converter technology, proven by an installed base of over 8 million units, the VI-J5V-02 combines state of the art power density with the efficiency, low noise and reliability required by next generation power systems.

Parametrics

VI-J5V-02 absolute maximum ratings: (1)Gate out impedance: 50 Ohms; (2)Gate in impedance: 103 Ohms; (3)Gate in high threshold: 6 Volts Use open collector; (4)Gate in low threshold: 0.65 Volts; (5)Gate in low current: 6 mA.

Features

VI-J5V-02 features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TüV, VDE, BABT; (3)CE Marked; (4)Up to 90% Efficiency; (5)Size: 2.28" x 2.4" x 0.5" (57,9 x 61,0 x 12,7); (6)Remote Sense and Current Limit; (7)Logic Disable; (8)Wide Range Output Adjust; (9)ZCS Power Architecture; (10)Low Noise FM Control.

Diagrams

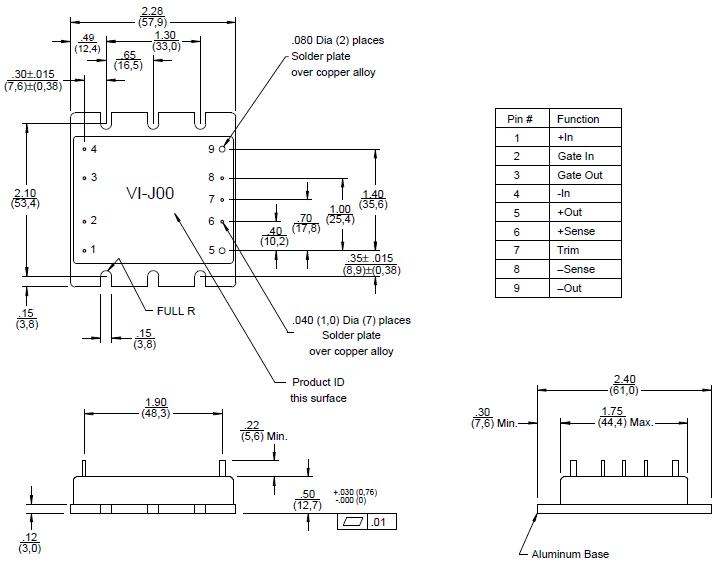

VI-J5V-02 Mechanical Drawing

VI-J00
VI-J00

Other


Data Sheet

Negotiable
VI-J00-CY
VI-J00-CY


CONVERTER MOD DC/DC 5V 50W
