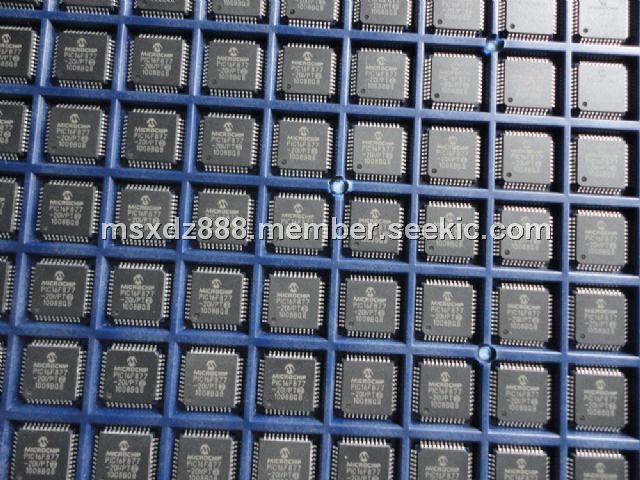

PIC16F877-20I/PT

PIC16F877-20I/PT, PICmicro microcontroller, Master SSP (MSSP) module

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~4.00

PartNumber:: PIC16F877-20I/PT

Brand:: Microchip Technology - Microchip | Pack: QFP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Yan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-25

From Other Seller

Part Number:PIC16F877-20I/PT
US $3.00 - 4.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC16F877-20I/PT is one member of the PIC16F877 series. It is a PICmicro microcontroller. With this PICmicro microcontroller, you can receive all exhibit anomalous behavior in their Master SSP (MSSP) modules, as described in this document.

Parametrics

Absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4): -0.3V to (VDD+0.3V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (5)Voltage on MCLR with respect to VSS: 0 to +14V; (6)Voltage on RA4 with respect to Vss: 0 to +8.5V; (7)Total power dissipation: 1.0W; (8)Maximum current out of VSS pin: 300mA; (9)Maximum current into VDD pin: 250mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ± 20mA; (12)Maximum output current sunk by any I/O pin: 25mA; (13)Maximum output current sourced by any I/O pin : 25mA; (14)Maximum current sunk by PORTA, PORTB, and PORTE (combined): 200mA; (15)Maximum current sourced by PORTA, PORTB, and PORTE (combined): 200mA; (16)Maximum current sunk by PORTC and PORTD (combined): 200mA; (17)Maximum current sourced by PORTC and PORTD (combined): 200mA.

Features

Features: (1)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation;(2)Programmable code protection;(3)Low power, high speed CMOS FLASH/EEPROM technology;(4)In-Circuit Serial Programming (ICSP) via two pins;(5)Single 5V In-Circuit Serial Programming capability;(6)Commercial, Industrial and Extended temperature ranges.
