Product Summary

The HB2E-DC24V is a cost saving subminature DIP relay with very low operating power. It is small size for increased packaging density.

Parametrics

Characteristics: (1)Maximum operating cycles: 20 cpm; (2)Initial insulation resistance: Min. 100 MW at 500 V DC; (3)Initial breakdown voltage: 500 Vrms Between open contacts; 500 Vrms Between contact sets; 1000Vrms Between contacts and coil; (4)Operate time (at nominal voltage): Max. 15ms (Approx. 10 ms); (5)Release time(without diode)(at nominal voltage): Max. 8ms (Approx. 5 ms); (6)Temperature rise (at nominal voltage)(at 20℃):1C: Max. 45℃; 2C: Max. 60℃; (7)Shock resistance: Functional: Min. 98 m/s2 {10 G}; Destructive: Min. 980 m/s2 {100 G}; (8)Vibration resistance: Functional:58.8 m/s2 {6 G}, 10 to 55 Hz at double amplitude of 1.5 mm; Destructive:117.6 m/s2 {12 G}, 10 to 55 Hz at double amplitude of 1.5 mm; (9)Conditions for operation, transport and storage (Not freezing and condensing at low temperature): Ambient: –40℃ to +50℃; temp.: –40°F to +122°F; Humidity: 5 to 85%R.H.; (10)Unit weight: 8 g .28 oz.

Features

Features: (1)Small size for increased packaging density; (2)Sensitive - Very low operating power; (3)Simple mechanism for stable quality - only 7 pieceparts; (4)DIP matching 16 pin IC socket; (5)Contact capacity - 1 A 125 V AC, 2 A 30 V DC.

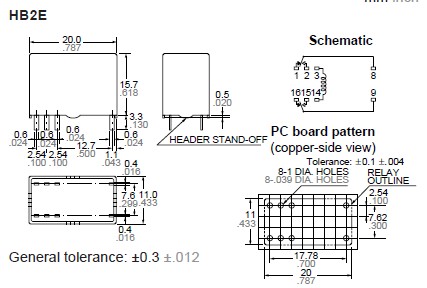

Diagrams
