Product Summary

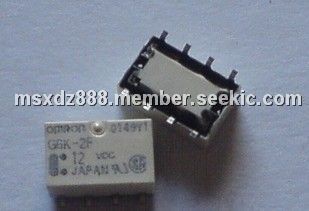

The G6K-2F-12VDC is a high frequency relay.

Parametrics

G6K-2F-12VDC absolute maximum ratings: (1) Contact resistance (See note 2.): 100 mΩ max.; (2) Operating (set) time (See note 3.): 3 ms max. (approx. 1.4 ms), 3 ms max. (approx. 1.2 ms); (3) Release (reset) time (See note 3.): 3 ms max. (approx. 1.3 ms), 3 ms max. (approx. 1.2 ms); (4) Minimum set/reset pulse time: 10 ms; (5) Insulation resistance (See note 4.): 1,000 MΩ min. (at 500 VDC).

Features

G6K-2F-12VDC features: (1) Handles 1 A, 30 VDC discrete load and 1 W at 1GHz; (2) Single-coil latching models available; (3) Ambient temperature range: －40 to 70℃; (4) Low coil power consumption: 100 mW; (5) Ideal for instrumentation and high-speed LAN network equipment; (6) RoHS Compliant.

Diagrams

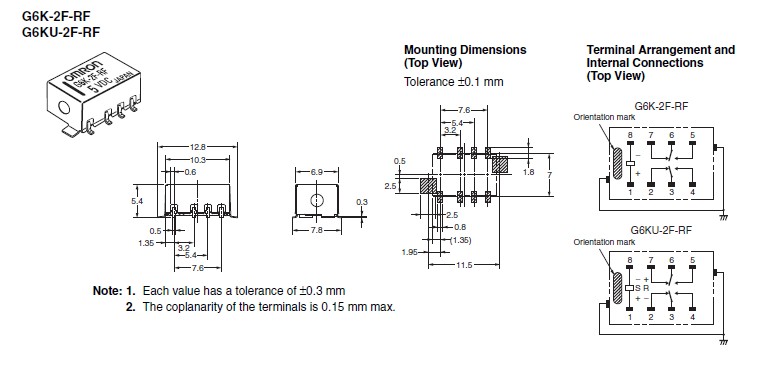

G6K-2F-12VDC pin connection

G6K-2F DC3
