Product Summary

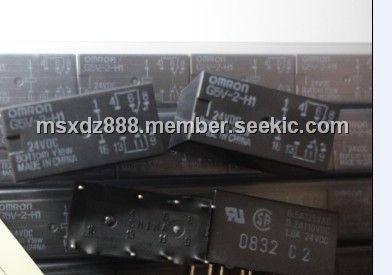

The G5V-2-H1-24V is a miniature relay for signal circuit.

Parametrics

G5V-2-H1-24V absolute maximum ratings: (1)Contact resistance: 50 mW max.; (2)Operate time: 7 ms max.; (3)Release time: 3 ms max; (4)Ambient temperature Operating: -25℃ to 65℃ (with no icing) Operating: -25℃ to 70℃; (5)Ambient humidity Operating: 5% to 85%; (6)Weight Approx: 5 g.

Features

G5V-2-H1-24V features: (1)Wide switching power of 10 μA to 2 A; (2)High dielectric strength coil-contacts:1,000 VAC; opecontacts: 750 VAC; (3)Conforms to FCC Part 68 requirements; (4)Ag + Au clad bifurcated crossbar contacts and fully sealed for high contact reliability; (5)New 150mW relays with high-sensitivity.

Diagrams

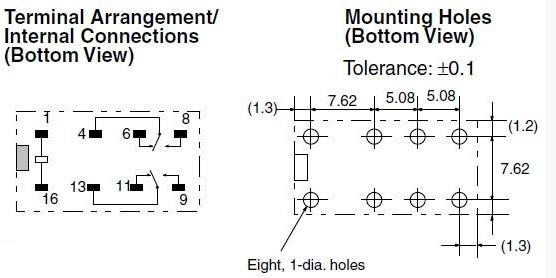

G5V-2-H1-24V block diagram

G5V-1-2 DC12
G5V-1-2 DC12

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 12DC 150mW Seal

Data Sheet

0-1: $1.61
1-25: $1.45
25-50: $1.28
50-100: $1.16
G5V-1-2 DC24
G5V-1-2 DC24

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 24DC 150mW Seal

Data Sheet

0-1: $1.25
1-25: $1.16
25-50: $1.04
50-100: $0.94
G5V-1-2 DC5
G5V-1-2 DC5

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 5DC 150mW Seal

Data Sheet

0-1: $1.61
1-25: $1.45
25-50: $1.28
50-100: $1.16
G5V-1-2 DC6
G5V-1-2 DC6

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 6DC 150mW Seal

Data Sheet

0-1: $0.98
1-25: $0.91
25-50: $0.85
50-100: $0.78
G5V-1-2 DC9
G5V-1-2 DC9

Omron Electronics

High Frequency / RF Relays ThruHole 1A SPDT 9DC 150mW Seal

Data Sheet

0-1: $1.07
1-25: $0.99
25-50: $0.92
50-100: $0.85
G5V-1-2-DC3
G5V-1-2-DC3


RELAY GENERAL PURPOSE SPDT 1A 3V

Data Sheet

Negotiable
