Product Summary

The ENC-03RC is a Piezoelectric Vibrating Gyroscope. It is an angular velocity sensor that uses the phenomenon of Coriolis force, which is generated when a rotational angular velocity is applied to the vibrator. The ENC-03RC is surface mountable device, can be mounted by automatic surface mounter. It is used to reduces the effect of temperature drift and suppresses output noise component around 30-33kHz.

Parametrics

ENC-03RC general specifications: (1)supply voltage:2.7Vdc to 5.25Vdc; (2)maximum angular velocity:±300℃/sec; (3)output(at angular velocity):1.35Vdc; (4)scale factor:0.67mV/℃/sec; (5)linearity:±5%FS; (6)response:50Hz; (7)weight:0.2g.

Features

ENC-03RC features: (1)Ultra-small and ultra-lightweight; (2)Quick response; (3)Low driving voltage, low current consumption; (4)Lead type: SMD; (5)Reflow soldering (standard peek temp. 245 deg. C).

Diagrams

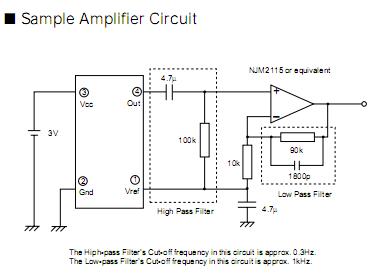

ENC-03RC circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ENC-03RC-R
ENC-03RC-R

Murata

Gyroscopes 50 Hz 5% 5.25volt

Data Sheet

0-741: $11.86
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ENC-03RC-R
ENC-03RC-R

Murata

Gyroscopes 50 Hz 5% 5.25volt

Data Sheet

0-741: $11.86
ENC-03RD-R
ENC-03RD-R

Murata

Gyroscopes 50 Hz 5% 5.25volt

Data Sheet

0-741: $11.86
ENC-DA3
ENC-DA3

Other


Data Sheet

Negotiable
ENC-DATEC-L-BTOR
ENC-DATEC-L-BTOR

Other


Data Sheet

Negotiable
ENC-DATEC-L-BTRD
ENC-DATEC-L-BTRD

Other


Data Sheet

Negotiable
