Product Summary

The BLF571 a 20 W LDMOS RF transistor. The applications of it are Industrial, scientific and medical applications, Broadcast transmitter applications.

Parametrics

BLF571 absolute maximum ratings: (1)drain-source voltage:110V; (2)gate-source voltage:-0.5 to +11V; (3)drain current:3.6A; (4)storage temperature:-65 to +150℃; (5)junction temperature:225℃.

Features

BLF571 features: (1)Easy power control; (2)Integrated ESD protection; (3)Excellent ruggedness; (4)High efficiency; (5)Excellent thermal stability; (6)Designed for broadband operation (10 MHz to 500 MHz); (7)Compliant to Directive 2002/95/EC, regarding Restriction of Hazardous Substances(RoHS).

Diagrams

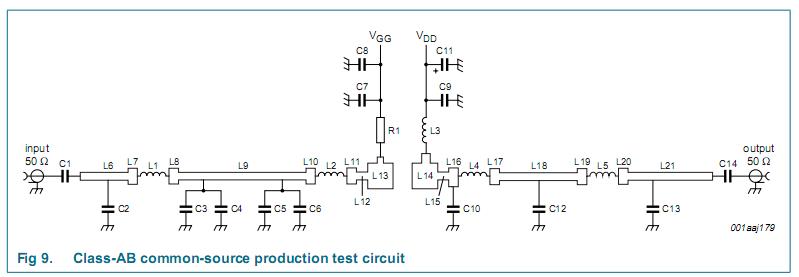

BLF571 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BLF571,112
BLF571,112
NXP Semiconductors
Transistors RF MOSFET Power Trans MOSFET N-CH 110V 3.6A 3-Pin
Data Sheet
0-1: $41.92
1-25: $37.47
25-100: $35.56
