ATMEGA8L-8AU

IC AVR, low-power, CMOS, 8-bit, microcontroller(MCU), 8K, 8MHz, 3V, 32TQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: ATMEGA8L-8AU

Brand:: ATMEL Corporation - ATMEL | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Yan's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-17

From Other Seller

Part Number:ATMEGA8L-8AU
US $1.00 - 1.50
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

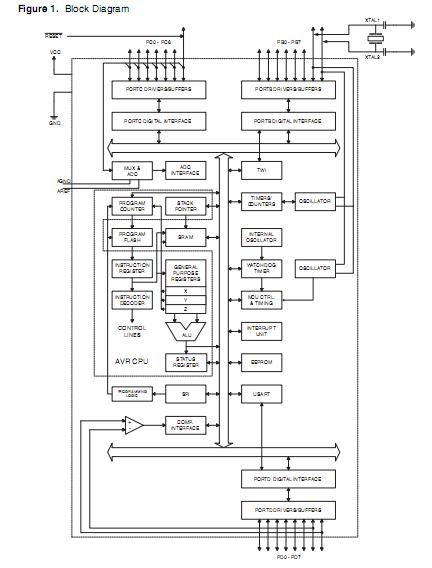

The ATMEGA8L-8PU is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA8L-8PU achieves throughputs approaching 1MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed. The ATMEGA8L-8PU is manufactured using Atmel’s high density non-volatile memory technology. The Flash Program memory can be reprogrammed In-System through an SPI serial interface, by a conventional non-volatile memory programmer, or by an On-chip boot program running on the AVR core.

Parametrics

ATMEGA8L-8PU absolute maximum ratings: (1)AVCC Analog Supply Voltage VCC: - 0.3 to VCC + 0.3(3)V; (2)VREF Reference Voltage: 2.0 AVCC; (3)VIN Input voltage: GND VREF; (4)Input bandwidth: 38.5 kHz; (5)VINT Internal Voltage Reference: 2.3 to 2.9 V; (6)RREF Reference Input Resistance: 32 kΩ; (7)RAIN Analog Input Resistance: 55 to 100 MΩ.

Features

ATMEGA8L-8PU features: (1)130 Powerful Instructions-Most Single-clock Cycle Execution; (2)32 x 8 General Purpose Working Registers; (3)Fully Static Operation; (4)Up to 16 MIPS Throughput at 16 MHz; (5)On-chip 2-cycle Multiplier; (6)8K Bytes of In-System Self-programmable Flash program memory; (7)512 Bytes EEPROM; (8)1K Byte Internal SRAM; (9)Write/Erase Cycles: 10,000 Flash/100,000 EEPROM; (10)Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode; (11)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (12)Real Time Counter with Separate Oscillator; (13)Three PWM Channels; (14)8-channel ADC in TQFP and QFN/MLF package; (15)Byte-oriented Two-wire Serial Interface; (16)Programmable Serial USART; (17)Master/Slave SPI Serial Interface; (18)Programmable Watchdog Timer with Separate On-chip Oscillator; (19)On-chip Analog Comparator.
