The 2RI100G-160 is a power diode module. The applications of the 2RI100G-160 include inverters for AC motors, power supply units for DC motors, DC power supply units for battery chargers, general purpose DC power supply unites.
Parametrics
2RI100G-160 absolute maximum ratings: (1)repetitive peak reverse voltage, VRRM: 1600V; (2)non-repetitive peak reverse voltage, VRSM: 1760V; (3)average forward current, 50/60 Hz sinewave, Tc= 98℃, IF(AV): 2×100A; (4)surge current, rated load conditions, 10ms, IFSM: 1200A; (5)rated load conditions, I2t: 16000A2s; (6)junction temperature, Tj: -40 to +150℃; (7)storage temperature, Tstg: -40 to +125℃; (8)tightening torque, mounting screw: M5: 25±5 kg·cm; (9)vibration resistance: 5G; (10)dielectric strength, between terminals and base: 2500VAC 1min; (11)Net. weight: 180g.
Features

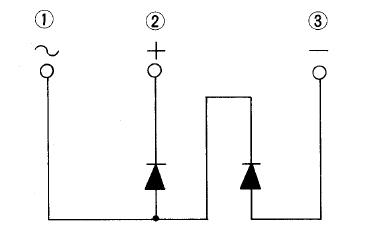

2RI100G-160 features: (1)All the terminals and the mounting plate are electrically isolated. These modules can be installed in the same cooling fin as other modules, thus saving installation space - a cost-effective feature; (2)The diode chips are coated with a glass of zinc oxide, making them highly resistant to temperature and humidity variation; (3)Two diodes chips are connected in series internally, so allowing the rectifying circuit to be simplified.
